Friday, 24 August 2012 15:50

Cryslove-C2 3D & 2D Laser Crystal Engraving Machine Featured

Written by  Machine Thailand
Rate this item
(2 votes)

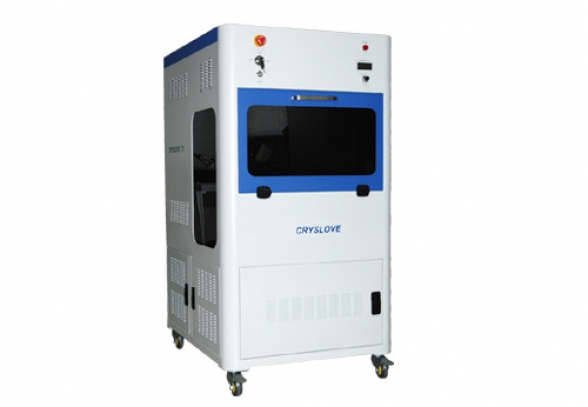

Cryslove-C2 3D & 2D Laser Crystal Engraving Machine Jclaser Cryslove-C2 3D & 2D Laser Crystal Engraving Machine

Cryslove C2 is used for 3D image and 2D pictures crystal sub-surface engraving . Compare with Cryslove B2, it capable to Engrave larger size crystal. Cryslove C2 have a big size work table. so you can put several pieces of crystal on work table to engrave.and the machine will engrave the cyrtal one by one.Just like 5CM*5CM*8CM crytal ,it can put 18 pieces.With this function,one worker can operate several machines.

This Green laser sub-surface engraver adopts latest diode pump laser techology. It has many advantages, such as high engraving speed, big engraving size ,exquisite engraving picture, good stability,more saving energy and no pollution .The machine software developed by our company can make the crystal engraved more beautiful.

1. CRYSLOVE C2 Apart
(1)Main body:Laser emmiter,Power supply box,Work table, wiring electrocircuit and pc
(2)Controlling system:Pc control


2. Technical Specification

Laser sourceLaser diode
Laser mediumNd:YAG
Maximum Laser frequency2500Hz
Max. resolution500DPI
Max. engraving size320mm*270mm*100mm
Wavelength532nm
Measurements970mm*750mm*1300mm
Max. power consumption1200W
Cooling systemAir cooling
Weight150Kg


3. Applications and materials

Craftwork, souvenir, photography for tourism, hotel, gallery.,etc.
Crystal crafts, glass, some kind of polymethyl methacrylate, and other transparent materials.

4:advantage
1.Adopt a special optimizing algorithm to devide the engraving 3D or 2D  figure to small sections. then the machine engrave those sections one by one.using this way, the machine can engraving more big 3D or 2D figure.
2.Cryslove C2 have a big size work table. so you can put several pieces of crystal on work table to engrave.and the machine will engrave the cyrtal one by one.Just like 5CM*5CM*8CM crytal ,it can put 18 pieces.With this function,one worker can operate several machines.

  • Laser Machine Manufacturer: Jing Chuang Laser
  • Laser type: Green Laser Diode
  • Max. laser power: 2.4W
  • Max. size of Image: 320*270*100mm
  • Actual Engraving Speed(point): 5000 points/second
  • Actual Engraving speed(line): 1000mm/second
  • System Dimensions(W×L×H): 970*150*1300MM
  • Weight of main system: 150KG
  • Power supply requirement: AC220V/100V 50HZ/60HZ
  • Max. power consumption: 1200W
